Fast Line Series Surface Mounted Lighting Fixtures With Frosted Diffuser

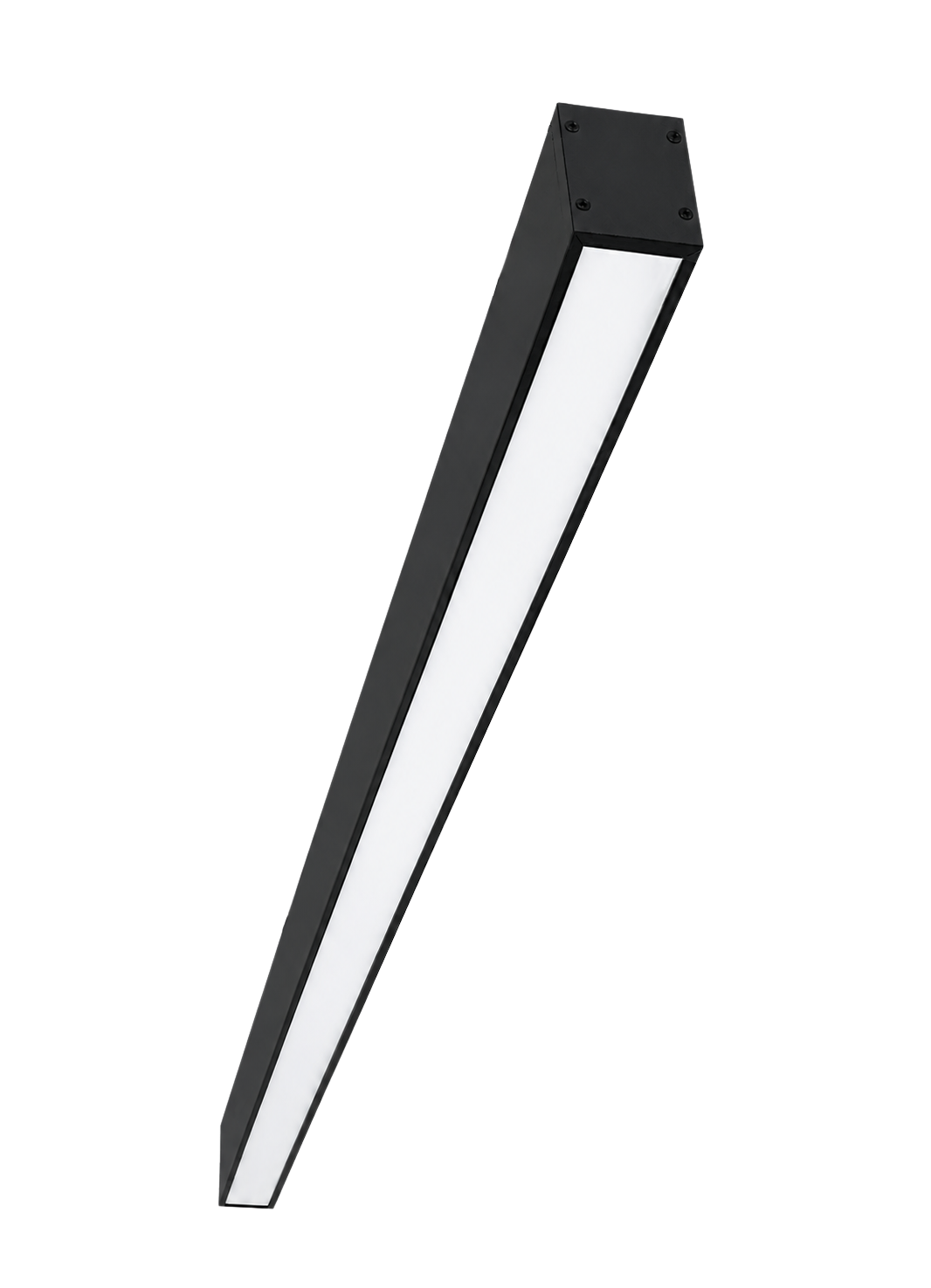

Fast Line Surface Mounted is the variant of the frosted-diffuser Fast Line profile that fixes directly to the ceiling surface. With no suspension components no ceiling height is given up and no additional support structure is needed on concrete soffits. Along long corridors and open-plan axes, units join end to end into an unbroken line; because the frosted diffuser holds an even brightness along that run, the joints do not read.

The product is manufactured in fifteen codes. Lengths are 570, 850, 1130, 1412, 1693, 1973, 2254, 2534 and 2815 mm, with two LED densities, L15C and L25C, up to 1973 mm. PL23U12L15C opens the range at 14 W and 1,445 lm in 570 mm; PL23U17L25C reaches the highest power in the series at 70 W and 7,585 lm. Body width is 45 mm and height 65 mm; weight ranges from 0.7 kg to 3.5 kg. Power, flux and dimensions match the pendant model exactly, so both mounting types can be resolved on a single lighting calculation within a project.

One difference from the pendant model is colour: silver is offered here alongside white and black. The body is aluminium in a slim 32 mm design; the converter is a long-life, ENEC-compliant constant current type. LED modules from LUMILEDS, OSRAM and NICHIA are rated at 60,000 hours. LDT and Revit files for each type are available on the product page. Suitable for shopping malls, markets, offices, meeting rooms, living rooms, waiting lounges, stores, hospitals, schools, corridors, open-plan offices, airports and terminals, universities, libraries and public buildings. ISO 9001-2015, TS EN IEC 60598-2-1, EC and UKCA documents and the technical drawing are on the product page. Dimmable DALI driver and emergency kit are optional; UGR<19 glare control and CRI 90 colour rendering can also be supplied on request.
