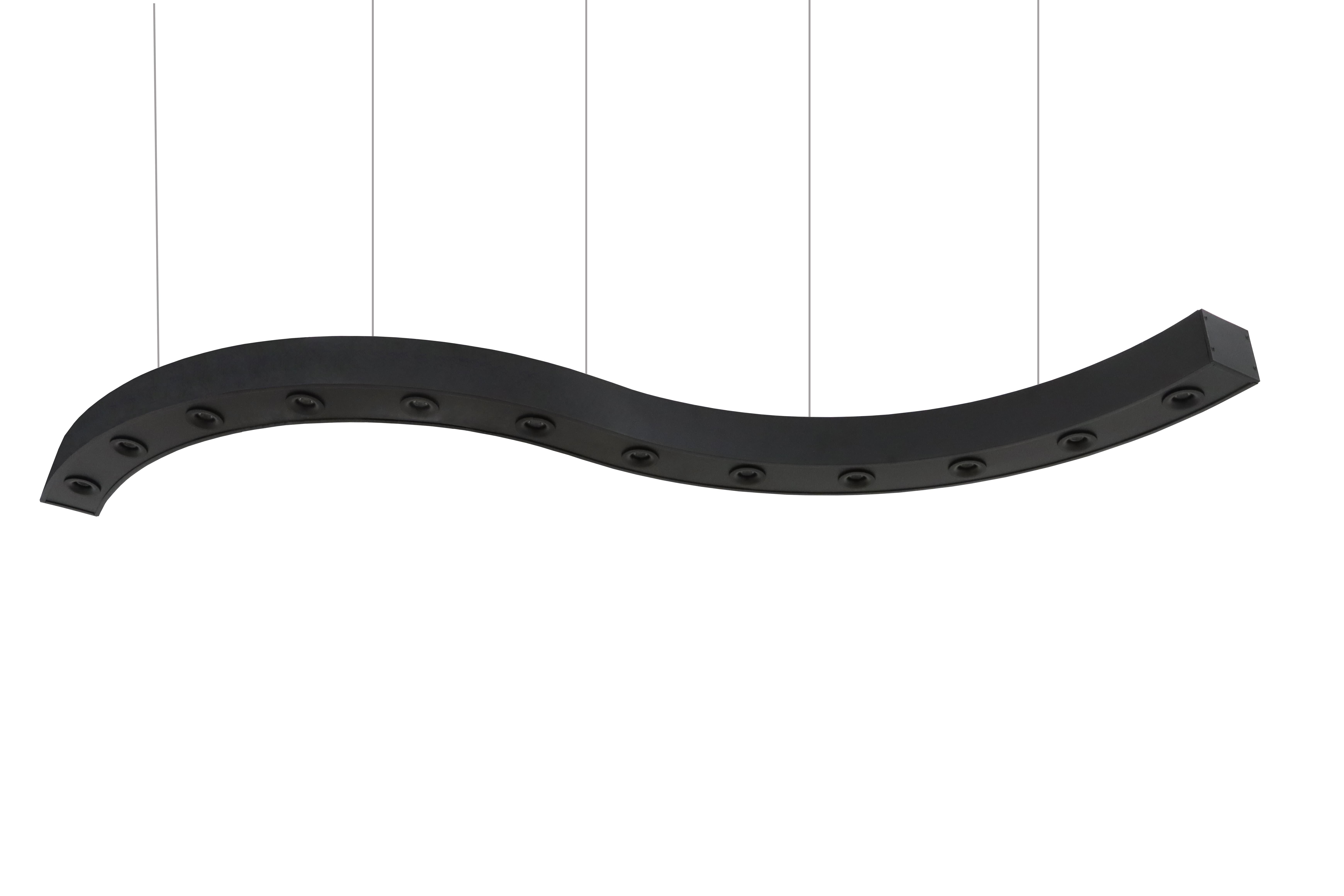

Galaksi S Vision

Galaksi S Vision is the lensed derivative of Galaksi S. Body geometry and lengths stay the same while the distribution is controlled by a dedicated lens: instead of spreading widely, the light is concentrated on the working plane. The power band drops markedly as a result, running from 14 W to 28 W rather than 39 W to 120 W.

The product is manufactured in five codes. PL8SSV23L15C gives 14 W and 1,680 lm at 1570 mm, PL8SSV24L15C 19 W and 2,240 lm at 2070 mm, and PL8SSV25L15C 23 W and 2,800 lm at 2620 mm. The three-curve types are PL8SSV33L15C at 21 W and 2,520 lm in 2360 mm and PL8SSV34L15C at 28 W and 3,360 lm in 3095 mm. Body width is 79 mm and height 82 mm; weight ranges from 3.9 kg to 7.7 kg. Efficacy reaches roughly 118 to 122 lm/W, the highest band in the range.

Focused distribution is the choice where the luminaire hangs close to eye level or where a particular surface below needs emphasis; glare risk falls and the light gathers on the intended plane. The aluminium body is offered in white and black, with LUMILEDS, OSRAM and NICHIA LED modules rated at 60,000 hours and an ENEC-compliant constant current converter. The suspension uses 1 mm braided steel cable and nickel-plated brass parts. Suitable for shopping malls, markets, offices, meeting rooms, living rooms, waiting lounges, stores, hospitals, schools, corridors, reception areas, executive floors, showrooms, restaurants and cafés, libraries and clinics. ISO 9001-2015, TS EN IEC 60598-2-1, EC and UKCA documents are on the product page. UGR<19 glare control and CRI 90 colour rendering can be supplied on request.
