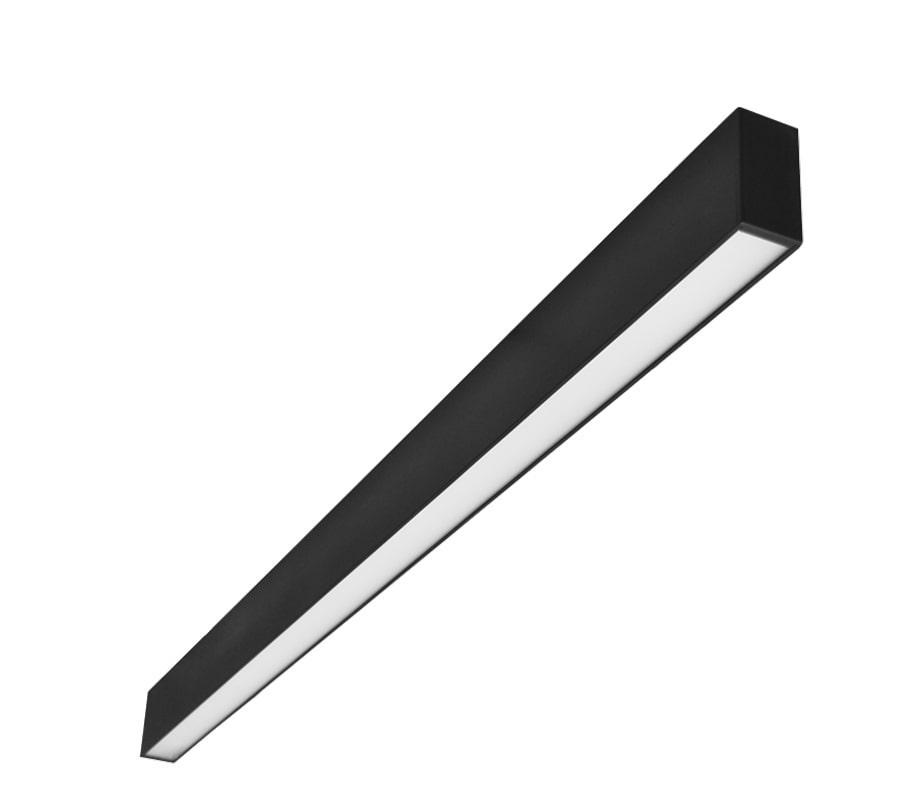

Simetri Slim Direct Surface Mounted

Simetri Slim Direct Surface Mounted is the variant of the 40 mm Simetri Slim profile that fixes directly to the ceiling surface. With no suspension components no ceiling height is given up and no additional support structure is needed on concrete soffits. The slim section carries extra value in surface mounting: the luminaire barely projects from the ceiling and reads only as a fine line.

The product is manufactured in fifteen codes. Lengths are 570, 850, 1130, 1410, 1693, 1973, 2254, 2534 and 2815 mm, with two LED densities, L15C and L25C, up to 1973 mm. PL21U12L15C opens the range at 14 W and 1,445 lm in 570 mm; PL21U17L25C reaches the highest power in the series at 70 W and 7,585 lm. Body width is 40 mm and height 76 mm; weight ranges from 1.4 kg to 5.3 kg. Power, flux and dimensions match the pendant model exactly, so both mounting types can be resolved on a single lighting calculation within a project.

Along long corridors and open-plan axes, units join end to end into an unbroken line. LDT and Revit files for each type are available on the product page. The aluminium body is offered in white and black; the converter is a long-life, ENEC-compliant constant current type. LED modules from LUMILEDS, OSRAM and NICHIA are rated at 60,000 hours. Suitable for shopping malls, markets, offices, meeting rooms, living rooms, waiting lounges, stores, hospitals, schools, corridors, open-plan offices, airports and terminals, universities, libraries and public buildings. ISO 9001-2015, TS EN IEC 60598-2-1, EC and UKCA documents and the technical drawing are on the product page. Dimmable DALI driver and emergency kit are optional; UGR<19 glare control and CRI 90 colour rendering can also be supplied on request.
