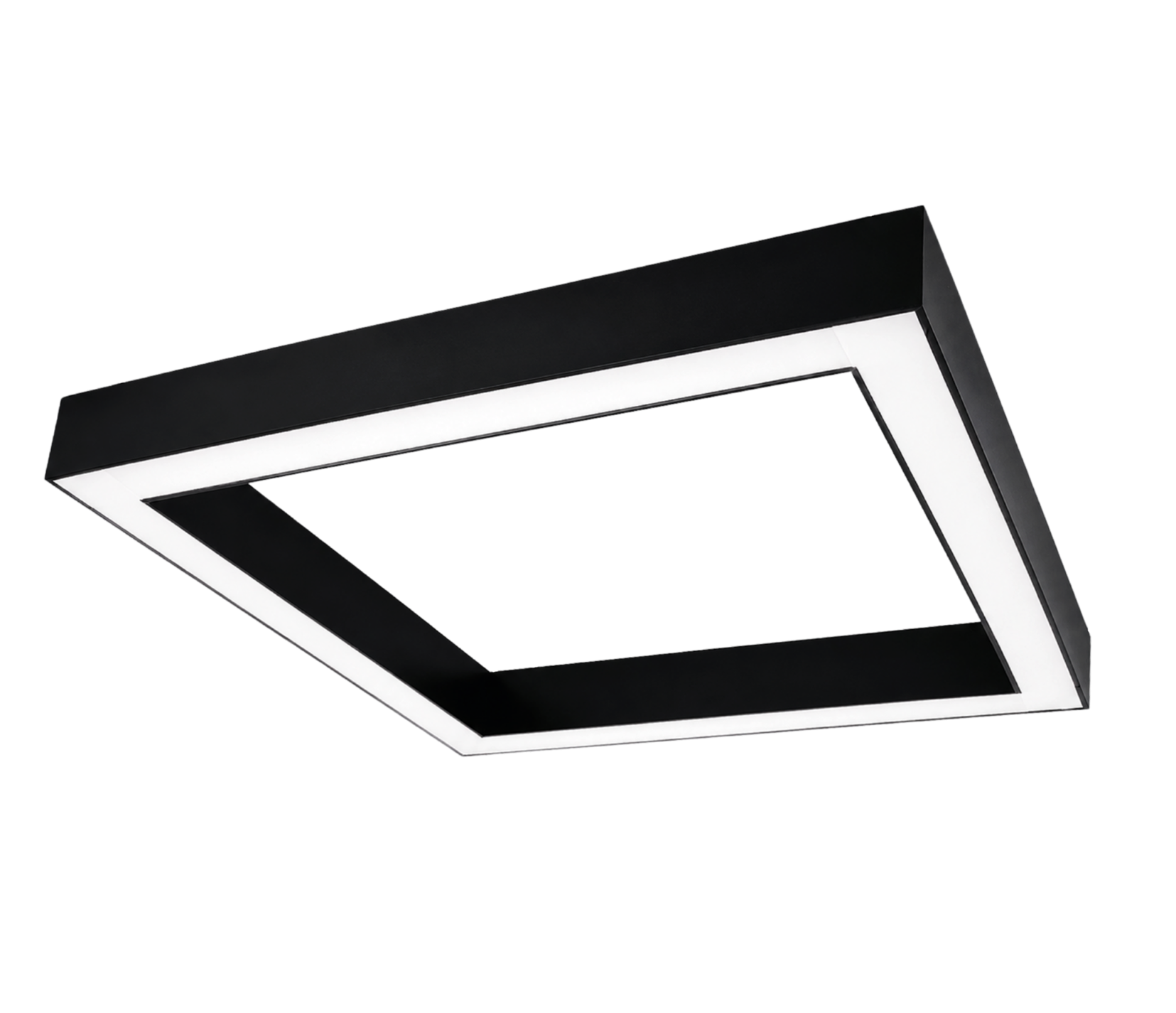

Vega Square Surface Mounted

Vega Square Surface Mounted is the variant of the square Vega body that fixes directly to the ceiling surface. With no suspension components, no ceiling height is given up and no additional support structure is needed on concrete soffits. Where there is no suspended ceiling, or where a pendant would not be appropriate, it carries the square geometry of the range through.

The product is manufactured in ten codes. The square types run from PL7UK22L15C at 53 W and 5,855 lm in 632x632 mm up to PL7UK88L15C at 205 W and 23,410 lm in 2341x2341 mm, with intermediate steps at 912x912, 1192x1192, 1473x1473 and 1752x1752 mm. The rectangular types cover 632x912, 632x1192, 912x1192 and 912x1473 mm. Body height is 90 mm across every type; weight ranges from 5.5 kg to 17.9 kg. Because power and flux match the pendant model exactly, areas needing pendant and surface mounting can be resolved on one lighting calculation within a project.

The aluminium body is offered in white and black; the converter is a long-life, ENEC-compliant constant current type. LED modules from LUMILEDS, OSRAM and NICHIA are rated at 60,000 hours. Suitable for shopping malls, markets, offices, meeting rooms, living rooms, waiting lounges, stores, hospitals, schools, corridors, hotel lobbies, clinics, libraries, bank branches and public buildings. ISO 9001-2015, TS EN IEC 60598-2-1, EC and UKCA documents and the technical drawing are on the product page. Dimmable DALI driver and emergency kit are optional; UGR<19 glare control and CRI 90 colour rendering can also be supplied on request.
