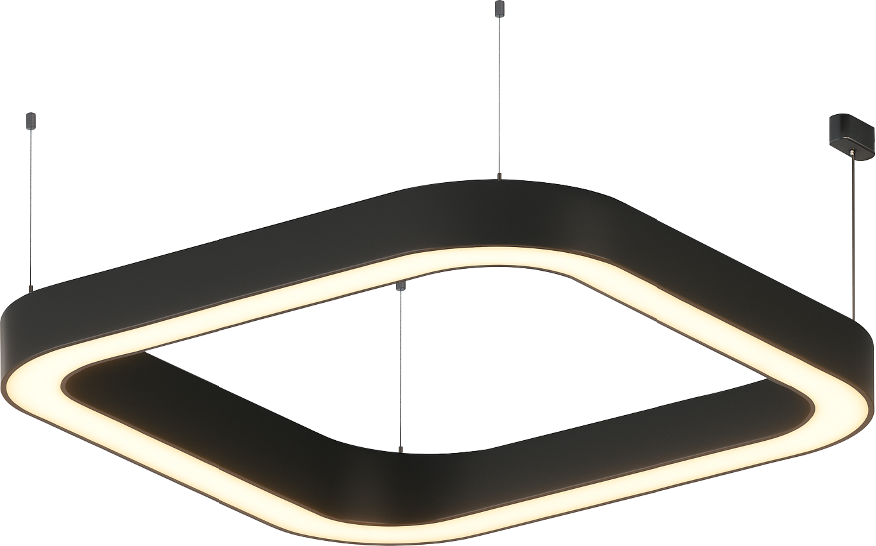

Galaksi Dolunay Horizon

Product Details

Body
Anodized aluminum with satin finishing. Black and white color options with elegant design.
Convertor
Long life, low power loss converter with constant current. Compatible with ENEC standards.
Led
LED modules with 60.000 hours lifetime LUMILEDS / SAMSUNG / NICHIA brand LEDs.
Suspension
Composed of 1mm steel wire rope and nickel-plated brass components. Suspension height is adjustable. Supplied with transparent electric cord and ceiling mounted electrical junction box with aesthetic design
Colours
White & Black
Areas
Shopping Malls, Supermarkets, Offices, Meeting rooms, Stores, Hospitals, Schools, Corridors.
Options
Dimmable DALI Driver, Emergency Kit.

Code	AC POWER (W)	Armature Output Flux (lm)	Width (mm)	Diameter / Length (mm)	Height (mm)	Weight (kg)
PL8SH16K12C	16	1875	-	360	94	3,1
PL8SH20K13C	20	2310	-	360	94	3,1
PL8SH24K14C	24	2645	-	360	94	3,1
PL8SH23K12C	23	3035	-	470	94	5,2
PL8SH30K13C	30	3715	-	470	94	5,2
PL8SH36K14C	36	4305	-	470	94	5,2
PL8SH36K12C	36	4760	-	600	94	6,5
PL8SH46K13C	46	5840	-	600	94	6,5
PL8SH57K14C	57	6785	-	600	94	6,5
PL8SH78K12C	78	10625	-	900	94	7,2
PL8SH100K13C	100	13000	-	900	94	7,2
PL8SH119K14C	119	15080	-	900	94	7,2
PL8SH153K12C	153	20600	-	1200	94	9,3
PL8SH200K13C	200	25850	-	1200	94	9,3
PL8SH243K14C	243	30100	-	1200	94	9,3
