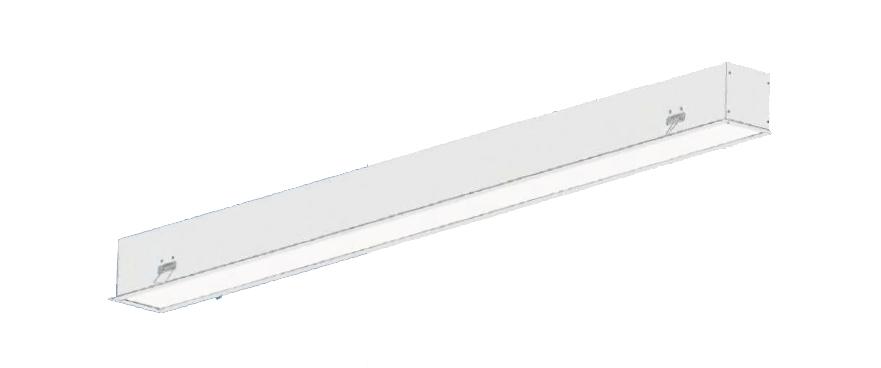

Proline Recessed

Product Details

Body
Anodized aluminum with satin finishing, elegant design with silver and white color.
Convertor
Long life, low power loss converter with constant current. Compatible with ENEC standards.
Led
LED modules with 60.000 hours lifetime LUMILEDS / OSRAM / NICHIA brand LEDs.
Colours
White, Silver
Areas
Shopping Malls, Supermarkets, Offices, Meeting rooms, Stores, Hospitals, Schools, Corridors
Options
Dimmable DALI Driver, Emergency Kit.

Proline Surface
Proline Recessed

Code	AC POWER (W)	Armature Output Flux (lm)	Width (mm)	Diameter / Length (mm)	Height (mm)	Weight (kg)
PL2A11L15C	8	685	84	290	84	1.2
PL2A11L25C	12	1030	84	290	84	1.2
PL2A12L15C	14	1370	84	571	84	1.5
PL2A12L25C	21	2055	84	571	84	1.5
PL2A13L15C	21	2055	84	851	84	2.0
PL2A13L25C	30	3080	84	851	84	2.0
PL2A14L15C	26	2740	84	1132	84	2,6
PL2A14L25C	41	4105	84	1132	84	2,6
PL2A15L15C	33	3420	84	1412	84	3.3
PL2A15L15CSB	33	3420	84	1410	84	3.3
PL2A15L15CSO	33	3420	84	1412	84	3.3
PL2A15L25C	51	5130	84	1412	84	3.3
PL2A15L25CSB	51	5130	84	1410	84	3.3
PL2A15L25CSO	51	5130	84	1408	84	3.3
PL2A16L15C	39	4105	84	1692	84	3,9
PL2A16L15CSB	39	4105	84	1690	84	3,9
PL2A16L15CSO	39	4105	84	1688	84	3,9
PL2A16L25C	61	6160	84	1690	84	3,9
PL2A16L25CSB	61	6160	84	1690	84	3.9
PL2A16L25CSO	61	6160	84	1688	84	3,9
PL2A17L15C	47	4790	84	1973	84	4.5
PL2A17L15CSB	47	4790	84	1971	84	4.5
PL2A17L15CSO	47	4790	84	1969	84	4.5
PL2A17L25C	70	7185	84	1973	84	4.5
PL2A17L25CSB	70	7185	84	1971	84	4.5
PL2A17L25CSO	70	7185	84	1969	84	4.5
PL2A18L15C	53	5475	84	2254	84	5.1
PL2A18L15CSB	53	5475	84	2252	84	5.1
PL2A18L15CSO	53	5475	84	2250	84	5.1
PL2A19L15C	60	6160	84	2534	84	5.5
PL2A19L15CSB	60	6160	84	2530	84	5.5
PL2A19L15CSO	60	6160	84	2530	84	5.5
PL2A10L15C	66	6840	84	2815	84	5.9
PL2A10L15CSB	66	6840	84	2813	84	5.9
PL2A10L15CSO	66	6840	84	2811	84	5.9
